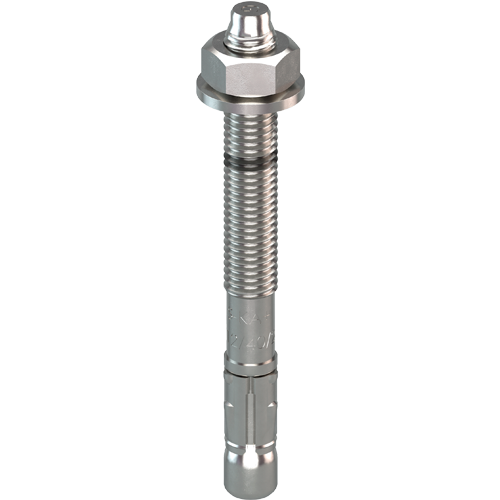

EJOT® BA-V Plus
Teknik Özellikler
-
Uygulamalar
- For embedment in cracked and non-cracked concrete ≥ C20/25
- Also suitable for natural stone
- Dry indoor areas
- For embedment of medium heavy to heavy fixings such as pillars, metal structures and wooden structures

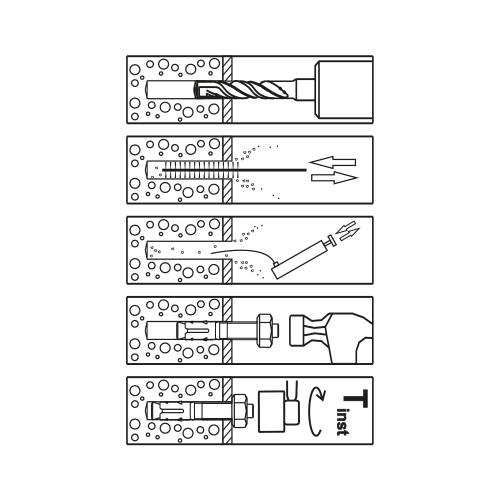

- For pre-, push-through and distance installations
- Seismic approval category C2 (M8-M16)
-
Özellikler
- Galvanized zinc-plated steel
- Approval for concrete, Option 1
- Fire restistance classes F30, F60, F90, F120
Note: Characteristic values apply to the compression strength of C20/25 concrete. Design load of an anchor for centric tension in cracked concrete.
-
Benefits
- Completely new design
- M10 and M12 with 2 different anchorage depths
M10: 40 mm and 60 mm
M12: 50 mm and 70 mm - Colored setting depth marking on the thread
- Anchor length letter code marked on the bolt head
- Installation also in thinner concrete than today with M8 and M10
M8: 80 mm vs. 100 mm
M10: 100 mm vs. 120 mm - 30 – 50% fewer turns for the assembly torque

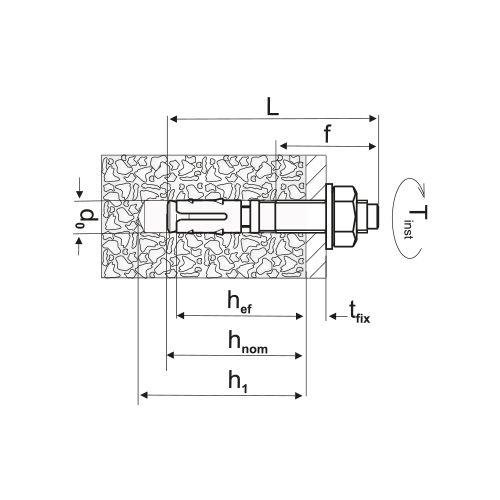

| Sipariş tanımlayıcı | Ürün kodu | Diş Çapı mm | Uzunluk mm | Sıkma kalınlığı ≥ mm | Delik derinliği t ≤ mm | Birim |
|---|---|---|---|---|---|---|
| BA-V Plus 12/40/20 | 9650001342 | 12.0 | 118.0 | 40.0 | 70.0 | |
