EJOT® Iso-Dart

Uygulamalar

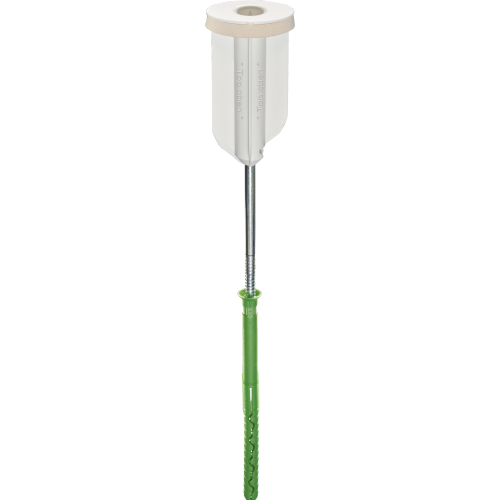

The EJOT Iso-Dart is a constructive fastening system comprising one installation bush made of plastic including sealing washer and one facade anchor (Ø 8 mm).

EJOT Iso-Dart comprising:

• 1 installation bush
• 1 sealing washer
• 1 EJOT facade anchor

Özellikler

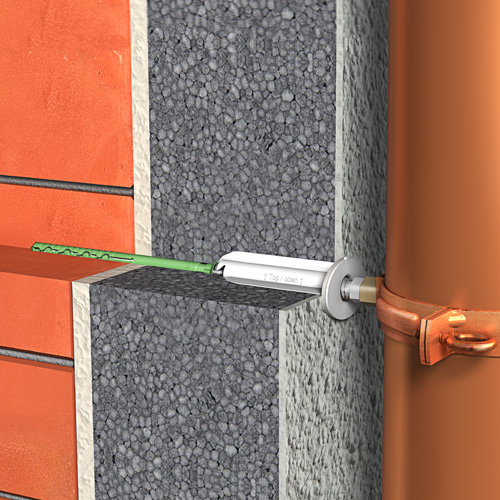

EJOT Iso-Dart for retrofitting light to medium heavy mounted parts to ETICS facades made of EPS, mineral wool and mineral foam.

With the EJOT Iso-Dart add-on parts can be mounted by taking up common coarse thread screws Ø 9 mm or hanger bolts Ø 9 mm with neck thread M10, e.g.:

• Downpipe brackets
• Signs and billboards
• Folding shutter locking mechanism
• Lamps
• etc.

Teknik Özellikler

• High load-bearing capacity by anchoring to the substrate
• Reduces the thermal transmission by thermal decoupling
  (Chi value 0,002 W/K acc. to TR025)
• Waterproofing against the plaster shell with high-quality EPDM seal
  Inspection of the resistance to driving rain in accordance with DIN EN 12155
• Easy and quick installation
