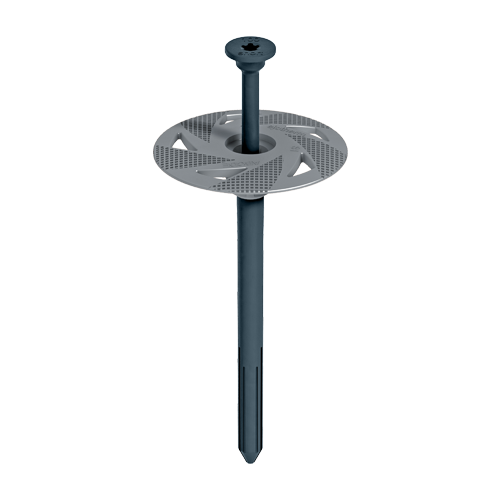

ejotherm® screw-in anchor S1 short

Teknik Özellikler

  • Uygulamalar

    • For fastening external thermal insulation systems with a render layer
    • Specifically developed for thin insulating materials (20 - 60 mm), for example high-performance insulation > 20 mm as well as reveal boards and ceiling insulation boards > 20 mm
    • Installation in all substrates
    • Surface fixed installation
  • Özellikler

    • Approved for all building material categories (A, B, C, D, E)
    • Highly comfortable installation and assembly
    • Optimised thermal bridge
    • Can be mounted with additional washer VT 90 and SBL 140 plus
  • Teknik Özellikler

    • Anchor diameter: 8 mm
    • Washer diameter: 60 mm
    • Drill hole depth h1≥ Use category A - D: 40 mm
      Drill hole depth h1≥ Use category E: 60 mm
    • Embedmentdepth hef ≥ Use category A - D: 30 mm
      Embedmentdeph hef ≥ Use category E: 50 mm
    • Screw drive: IPR 30 (5 lobe)
    • Insulation material thickness: 20 - 60 mm
    • Use categories: A, B, C, D, E



    Characteristic loads can be found in the brochure

Filtrele

Seçili filtreler

    Sipariş tanımlayıcı Ürün kodu Uzunluk mm Birim
    ejotherm S1 short 60 8715060570 60.0 100

    Teknik Özellikler

    Uzunluk
    60.0
    Sipariş tanımlayıcı
    ejotherm S1 short 60
    Birim
    100
    ejotherm S1 short 80 8715080570 80.0 100

    Teknik Özellikler

    Uzunluk
    80.0
    Sipariş tanımlayıcı
    ejotherm S1 short 80
    Birim
    100
    ejotherm S1 short 100 8715100570 100.0 100

    Teknik Özellikler

    Uzunluk
    100.0
    Sipariş tanımlayıcı
    ejotherm S1 short 100
    Birim
    100
